The right grade of air treatment

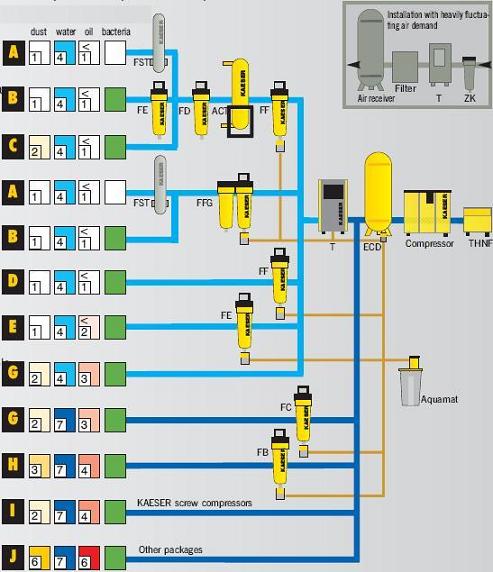

Air treatment using a refrigeration dryer (+3 C pressure dew point)




Dairies, breweries

Food and semi luxury food prod.

Very clean con- veying air, chem- ical plant

Hospitals, breathing air

Weaving mach., photolab, pharma

Paint spraying, powder coating

Packaging, control and instrument air

General works air, quality sandblasting

Shotblasting

Low quality shotblasting

Aeration for waste water systems

No quality requirements

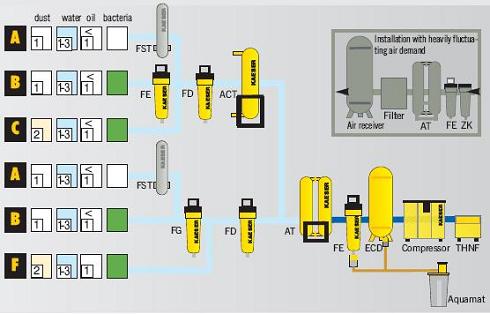

For air mains endangered by frost: treatment with a desiccant dryer (down to-70 C dew point)


Medicine prod., dairies, breweries

Optics, microchip and (semiluxury) food prod.

Breathing air

Process air, photolabs, pharmaceuticals

Breathing air

Very dry applications endangered by frost: paint spraying, very fine pressure controllers


Legenda concerning foreign matter:


Explanation of filters:
THNF bag filter
cleans dusty and highly contaminated intake air
ZK centrifugal separator
separates accumulating condensate
ECD ECO drain (electronic)
drains condensate with level control
FB prefilter 3 m
separates liquid droplets and solid particles >3 m, oil carry-over<5mg/m3
FC prefilter 1m
separates liquid droplets and solid particles >1m, oil carry-over <1mg/m3
FD particulate filter 1m
separates dust particles >1m
FE microfilter 0.01ppm
separates solid particles and oil mist >0.01m, oil carry-over <0.01mg/m3
FF microfilter 0.001ppm
separates oil aerosols and solid particles >0.01m, oil aerosol carry-over <0.001mg/m3
FG activated carbon filter
for adsorption of oil vapors, oil vapor carry-over <0.003 mg/m3
FFG combination filter
comprising FF and FG
T refrigeration dryer
dries compressed air, pressure dew point to +3C
AT adsorption dryer
dries compressed air
DC series: heatless regeneration, pressure dew point to -70 C
DW, DN, DTL, DTW series: heat regeneration, pressure dew point to -40 C
ACT activated carbon adsorber
for adsorption of oil vapours, oil vapour , carry-over <0.003 mg/m3
FST sterile filter
provides bacteria-free compressed air
Aquamat
for condensate separation
Quality requirements:
Oil vapor carry-over < 0.003 mg/m3, particle retention > 0.01 mm,
sterile, odourless and tasteless
Oil vapor carry-over < 0.003 mg/m3, particle retention > 0.01 mm
Oil vapor carry-over < 0.003 mg/m3, particle retention > 1 mm
Oil carry-over < 0.001 mg/m3, particle retention > 0.01 mm
Oil carry-over < 0.01 mg/m3, particle retention > 0.01 mm
Oil carry-over < 0.01 mg/m3, particle retention > 1 mm
Oil carry-over < 1 mg/m3, particle retention > 1 mm
Oil carry-over < 5 mg/m3, particle retention > 3 mm
Oil carry-over < 5 mg/m3, particle retention > 1 mm
untreated




























































Degree of filtration:


For more information: FUCHS LUBRITECH GMBH
