The right grade of air treatment
|

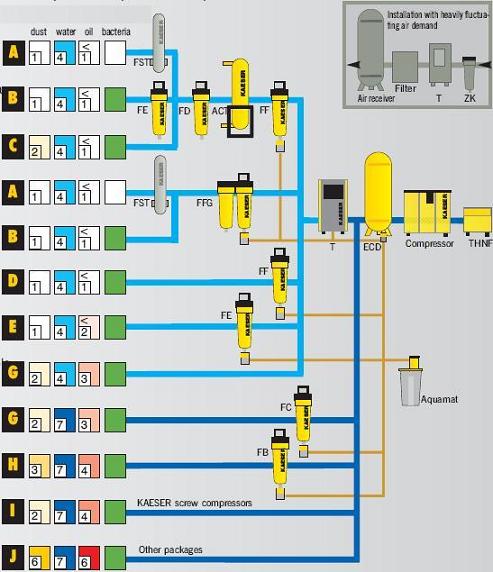

Air treatment using a refrigeration dryer (+3 °C pressure dew point) |
|
Dairies, breweries Food and semi luxury food prod. Very clean con- veying air, chem- ical plant Hospitals, breathing air Weaving mach., photolab, pharma Paint spraying, powder coating Packaging, control and instrument air General works air, quality sandblasting Shotblasting Low quality shotblasting Aeration for waste water systems No quality requirements |
 |
|

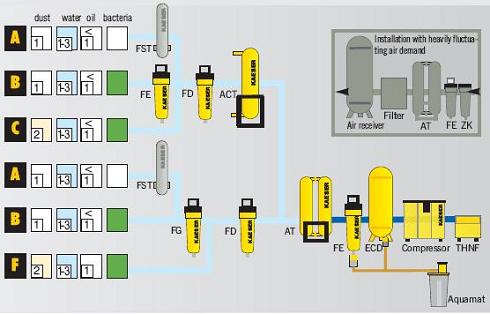

For air mains endangered by frost: treatment with a desiccant dryer (down to-70 °C dew point) |
|
Medicine prod., dairies, breweries Optics, microchip and (semiluxury) food prod. Breathing air Process air, photolabs, pharmaceuticals Breathing air Very dry applications endangered by frost: paint spraying, very fine pressure controllers |
 |
Legenda concerning foreign matter: |
 |
| Explanation of filters: |
| THNF bag filter cleans dusty and highly contaminated intake air |
| ZK centrifugal separator separates accumulating condensate |
| ECD ECO drain (electronic) drains condensate with level control |
| FB prefilter 3 µm separates liquid droplets and solid particles >3 µm, oil carry-over<5mg/m3 |
| FC prefilter 1µm separates liquid droplets and solid particles >1µm, oil carry-over <1mg/m3 |
| FD particulate filter 1µm separates dust particles >1µm |
| FE microfilter 0.01ppm separates solid particles and oil mist >0.01µm, oil carry-over <0.01mg/m3 |
| FF microfilter 0.001ppm separates oil aerosols and solid particles >0.01µm, oil aerosol carry-over <0.001mg/m3 |
| FG activated carbon filter for adsorption of oil vapors, oil vapor carry-over <0.003 mg/m3 |
| FFG combination filter comprising FF and FG |
| T refrigeration dryer dries compressed air, pressure dew point to +3°C |
| AT adsorption dryer dries compressed air DC series: heatless regeneration, pressure dew point to -70 °C DW, DN, DTL, DTW series: heat regeneration, pressure dew point to -40 °C |
| ACT activated carbon adsorber for adsorption of oil vapours, oil vapour , carry-over <0.003 mg/m3 |
| FST sterile filter provides bacteria-free compressed air |
| Aquamat for condensate separation |
| Quality requirements: | |
 |
Oil vapor carry-over < 0.003 mg/m3, particle retention > 0.01 mm, sterile, odourless and tasteless |
 |
Oil vapor carry-over < 0.003 mg/m3, particle retention > 0.01 mm |
 |
Oil vapor carry-over < 0.003 mg/m3, particle retention > 1 mm |
 |
Oil carry-over < 0.001 mg/m3, particle retention > 0.01 mm |
 |
Oil carry-over < 0.01 mg/m3, particle retention > 0.01 mm |
 |
Oil carry-over < 0.01 mg/m3, particle retention > 1 mm |
 |
Oil carry-over < 1 mg/m3, particle retention > 1 mm |
 |
Oil carry-over < 5 mg/m3, particle retention > 3 mm |
 |
Oil carry-over < 5 mg/m3, particle retention > 1 mm |
 |
untreated |
Degree of filtration: |
 |
