Arctic: spiral freezers, spiral coolers.

Inhoudsopgave
 Arctic.
 Flexible.
 Product-designed.
 Secure investment.
 Hygienic.
 Belt cleaning system.
 Internal cleaning system.
 Defrosting system.
 Conveyor system.
 Belt options.
 Arctic: for example like this.

Arctic.

Whether baked goods, meat and poultry products, vegetable and potato products, or prepared foods, whether freezing or cooling in a wide range of capacities: our spiral systems are designed exclusively to your products. That is why we offer you the alternatives of horizontal or vertical air flow.

Flexible.

The basic system is available as a single or twin tower with upward or downward running conveyor belts – depending o the front or end capacities of your processing equipment. The various layouts of the belts offered provide the necessary flexibility of our systems. Straight, 90-degree or 180-degree belt configurations, as well as the use of different refrigerants. Anything is possible.

Product-designed.

The frequency-controlled main drive and overdrive motors as well as the use of a PLC ensure adaptation to nearly all your needs – simple and clear to operate through menu-based user prompts, as well as data management for all products and systems data via recipes. Simply product-designed.

Secure investment.

Due to our many years of experience, we can guarantee an investment in high reliability and a long service lifetime. Our technology, which meets the demands of industrial, multi-shift production, is just as impressive as our standard industrial components used. Enhanced system reliability is provided not only through continuous belt monitoring, but also by equipping with a modem and touch screen display. This makes it possible for you to call up system information at any time – on site or online. Worldwide.

Hygienic.

Our thoroughly hygienic design – especially the use of open torsion-resistant channel profiles – meets the strict requirements and standards of the food industry. The open and clear design ensures maximum access to the entire system, and combined with a fully seam-welded, stainless-steel floor, provides optimal cleaning, thuis reducing your expenditures of time and money.

Belt cleaning system.

Above and below the belt, mounted spray-bars with different kinds of nozzles ensure efficient and thorough cleaning of the entire belt as it moves through its cycles.

Internal cleaning system.

Using the cleaning program (wash, rinse, disinfect), you can clean thoroughly the complete interior of the system through a wide-ranging piping system, with numerous rotating nozzles and an additional spray-bar mounted on the inside of the drum. A separate pump station generates and controls the water pressure and monitors the optimum dosage of the detergent. The wet cleaning system can be expanded into a complete belt cleaning system by adding a blow dryer and a pump station with a detergent dispenser.

Defrosting system.

If defrosting at the end of a shift is your normal practice, then it can be assisted by using hot water, electrical heat, or hot gas. With a sequential defrost system using hot gas, the system can run up to six days without interruption.

Conveyor system.

Shape-sensitive products can be placed safely on the tangential belt through a separate loading conveyor – optional with individually driven lanes. We also provide all the conveying systems needed for your spiral system.

Belt options.

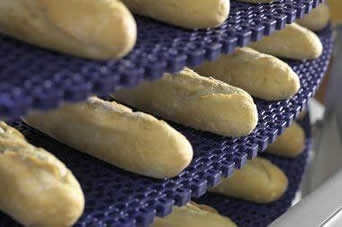

Plastic or metal belts are available additionally with side plates and lane dividers. We also offer special designs, such as the twin-belt system (two separate belts on a single drum).

Arctic: for example like this.


Our systems are individually designed to your products and requirements. Here are just a few examples of our services and possibilities. Possibilities for you.

Belt width 450 mm 660 mm 760 mm 910 mm 1.070 mm
Capacity
at tout -18° C
Pizza, with toppings
ø 250 x 25 mm
tin +25°C
550
kg/h
1.500
kg/h
1.700
kg/h
3.000
kg/h
3.600
kg/h
Rolls, baked,
110 x 75 x 70 mm
tin +60°C
300
kg/h
650
kg/h
900
kg/h
1.300
kg/h
1.700
kg/h
Hamburger, raw
ø 90 x 10 mm
tin +5°C
1.000
kg/h
2.000
kg/h
2.700
kg/h
4.000
kg/h
5.000
kg/h

Dimensions
Length 5,7 m 7,4 m 8,3 m 9,6 m 11,0 m
Width 4,2 m 5,6 m 6,2 m 7,2 m 8,2 m
Height 4,5 m 5,4 m 5,4 m 5,4 m 5,4 m


Voor meer informatie: Heinen Freezing GmbH
