Durchfluss Vortex

Some items are not yet translated in English.

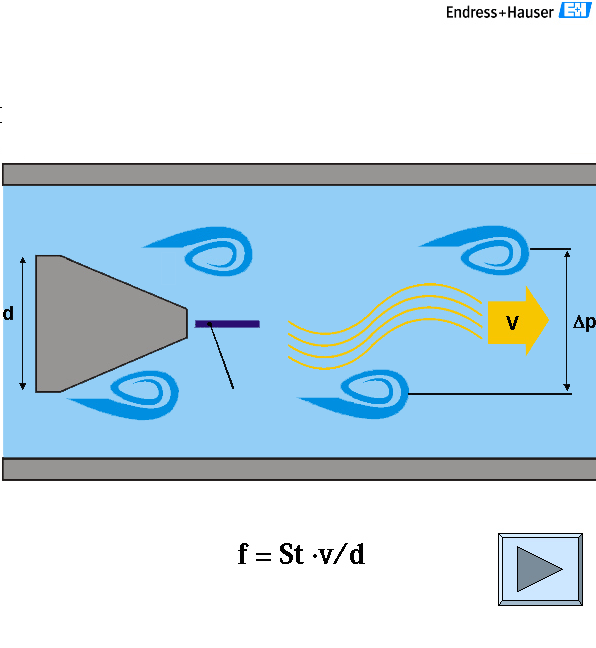

Mode of operation of a vortex meter
Vortex frequency

Some items are not yet translated in English.
Capacity sensor
Primary vibration compensation (balanced system)
No weld seams in the process
11,600 psi (800 bar)
Insensitive to dirt
Insensitive to temperature shocks (>150 K/s)
Insensitive to pressure shocks
Negative electrode

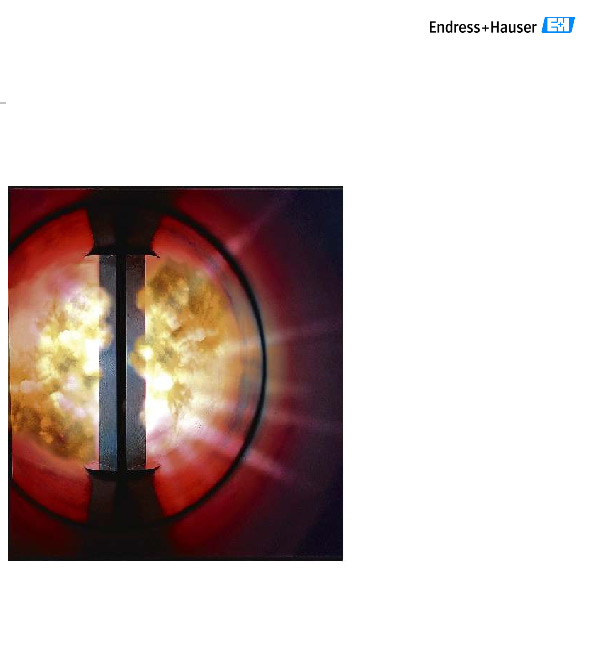

In the vortex meter the vortices are generated by a flow body which is installed in the flow direction upstream of the sensor.
Sensor Concept - Proline Prowirl
Functional Principle

Some items are not yet translated in English.
Vortex Flow Measurement
Continuous processes, no pulsations, viscosities < 10 mPas
Flow profile: inflow and outflow sections required
  • Linear frequency output
  • Can be used for steam, gas and liquids
  • Low pressure drop
  • Large nominal width range
  • Low installation costs
  • Wide measuring range
  • No moving parts
