DrinkTec 2009 Pall

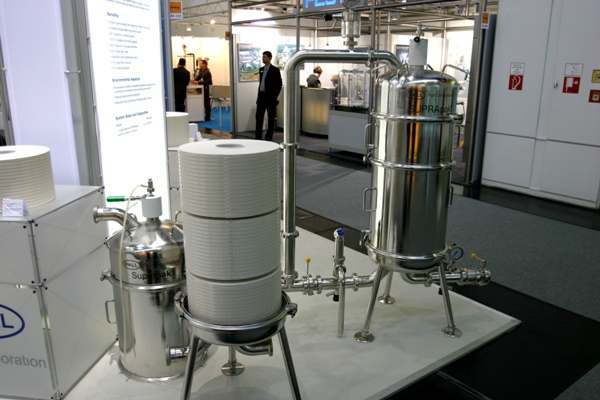

Pall has all kinds of solutions based on depth or surface filtration.

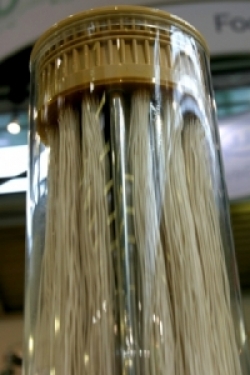

Pall Aria UNA – 620C Module


Ground water – removal of iron and manganese
Surface and municipally treated water – removal of particles, turbidity and microorganisms e.g. Cryptosporidium and Giardia cysts
Water refuse, e.g. filter backwash recovery
Bottle rinsing water – removal of fine colloids, protection of the final filter
End of pipe recovery
CIP recycling
  • Consistent water quality production regardless to raw water quality
  • Porous homogenous material for high mechanical resistance
  • Polyvinylidene Fluoride (PVDF) membrane for high chemical resistance
  • Food contact grade materials
  • Turbidity reduction: < 0.1 NTU
  • Total suspended solids< 0.1 mg/L
  • Salt Density Index (SDI) < 3
  • Microorganisms reduction: 6 log Cryptosporidium and Giardia cysts
  • Organic reduction: Removal of natural or coagulated organic particles such as colloids
  • Metals reduction: Removal of oxidized iron, manganese and arsenic
  • Membrane life time > 5 years
  • Highly compatible with chlorine at up to 5,000 ppm NaOCl
Technical details
  • Robust PVDF hollow fiber membrane
  • Porous layer
  • End sealing potting
  • Outside-inside filtration flow
  • Large surface area membrane module: 50 m2
  • Length: 2.160 mm
  • Diameter: 165 mm
  • Fiber inner diameter: 0.7 mm
  • Fiber outer diameter: 1.4 mm
  • Maximum trans membrane pressure: 3 bar
  • Maximum temperature: 40°C
  • pH range: 1 - 10

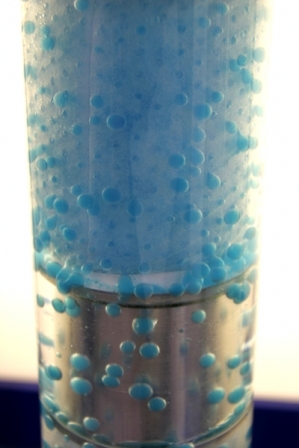

Liquid Liquid Coalescer Demonstration


Separation of aqueous from oil phases in emerging flavor, extract, vitamin and other emulsion-based food and beverage fluids.

Technical details
  • Incoming fluid stream is continuously separated into aqueous and oily fluid streams
  • Inside to outside flow path results in coalescing action
  • Pre-filtration followed by final coalescing
  • Customized solutions based on customer requirements
  • Consistent and sharp separation of dispersed aqueous and oily phases even with high interfacial tension
  • Energy savings and increased process up time due to change from batch to continuous production
  • Customer and brand protection with coalescers which meet food contact regulations
  • Higher process yields due to elimination of tankage and filters aids
  • Reduced exposure to solvent with a closed system
  • Elimination of handling. Labor and waste-intensive filter aid technology
  • Flexible sizing matched to requirements of the application
  • Reduced cleaning and water costs

Para más información: Pall GmbH
